What is MariaDB MaxScale and what is it used for?

In the world of database management, the topic of scalability and reliability is central to ensuring that applications can function correctly, even in the presence of a high volume of traffic or requests. One of the tools that emerge in this context is MariaDB MaxScale, a powerful database router developed by MariaDB Corporation, designed to address issues related to SQL traffic management, scalability, security, and optimization.

In this article, we will explore what MariaDB MaxScale is, what its main features are and what it is used for, examining how it can be integrated into IT architectures to improve the performance and reliability of MariaDB and MySQL databases.

Introduction to MariaDB MaxScale

MariaDB MaxScale is a Smart SQL Proxy which acts as an intermediary between SQL clients and one or more MariaDB or MySQL database servers. It is a modular component that provides various features to manage the distribution and optimization of data traffic between the various nodes of a database cluster.

MaxScale is designed to address the needs of high-traffic applications, reducing database management complexity, improving load distribution, and ensuring business continuity in the event of failures. Simply put, MaxScale intelligently manages SQL traffic, ensuring that queries are directed to the right server at the right time.

Why use a Database Proxy?

In a standard configuration, an application connects directly to the database server. This is simple but has obvious limitations as the system grows or as fault tolerance and scalability issues arise. Having a proxy between clients and database servers solves many of the problems associated with managing complex configurations.

A proxy like MariaDB MaxScale introduces several advantages:

1. Load balancing: allows you to distribute SQL traffic across multiple database servers, preventing a single one from becoming overloaded.
2. Automatic failover: In the event that a database server fails, MaxScale can redirect traffic to another available node without impacting the application or end user.
3. Intelligent query routing: MaxScale can distinguish between read and write queries, routing them to the most appropriate server. For example, write queries can be sent to a master node, while read queries can be sent to replica nodes.
4. Safety: MaxScale can protect your database backend from external attacks and vulnerabilities by acting as a control point for data access.
5. Simplified management: Reduces the complexity of applications that interact with the database by isolating implementation and infrastructure changes from clients.

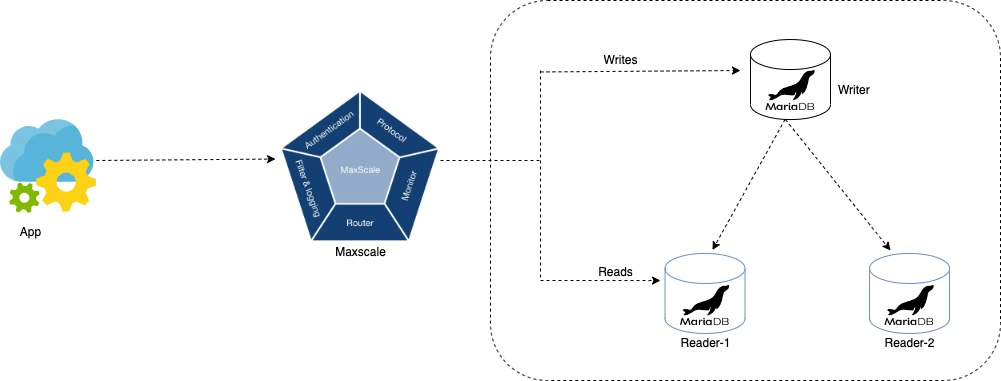

MariaDB MaxScale Components and Architecture

MaxScale is composed of several modules that provide the key functionality of the system. These modules are extensible and configurable, allowing you to adapt the proxy behavior to specific application needs.

Main Modules

1. Router Module: It is the module responsible for routing SQL queries. MaxScale supports several types of routers:
   • Read/Write Split Router: separates read queries from write queries, sending the former to replica servers (slaves) and the latter to the master.
   • Read Connection Router: distributes read connections among the various replica nodes.
   • Binlog Router: Used to create replication chains or advanced multi-master replication configurations.
2. Monitor Module: MaxScale uses this module to constantly monitor the health of database servers. This allows MaxScale to make informed decisions about how to route queries (for example, avoid sending traffic to a node that is unavailable).
3. FilterModule: Allows you to apply filters to SQL queries before they reach the backend server. This can be useful for logging or dynamically modifying queries.
4. Protocol Module: handles communication between clients and MaxScale, and between MaxScale and backend servers. It primarily supports the MariaDB/MySQL protocol, but can be extended to support other SQL protocols.

How MariaDB MaxScale Works

The MaxScale workflow can be described in these steps:

1. Client Connection: A client application, such as a website or enterprise software, connects to MaxScale rather than directly to the database.
2. Query Routing: Once the query is received, MaxScale decides, based on the query type and router configuration, which database server will handle the request.
   • If the query is a read, it can be sent to a slave node.
   • If it is a script, it is sent to the master.
3. Monitoring and Failover: MaxScale constantly monitors the health of database nodes. If a node becomes unavailable, MaxScale can temporarily remove it from the active server pool and redirect requests to another server without the client application being aware of it.
4. Return of Result: Once the query is executed, MaxScale returns the result to the client.

What is MariaDB MaxScale for: Main Use Cases

MariaDB MaxScale finds application in a wide range of scenarios, especially when it comes to distributed, high-availability, or high-traffic database configurations. Here are some typical use cases where MaxScale offers a significant advantage:

1. Load Balancing on Cluster Replica

One of the most common scenarios for using MaxScale is load balancing in a master-slave replication setup. In MariaDB or MySQL replication, one server (master) handles write operations, while one or more replica servers (slaves) handle read operations.

MaxScale, with its Read/Write Split Router, is able to distribute queries efficiently, sending read operations to the replica nodes and write operations to the master node. This allows you to make the most of the available resources, avoiding overloading the master node.

2. Automatic failover

When managing a database cluster, one of the main issues is failure management. If a master node becomes inaccessible, MaxScale can take over the fail over automatically, promoting one of the replica nodes to the new master and redirecting client connections to the new node. This avoids significant downtime and ensures service continuity.

3. Centralized Monitoring and Management

MaxScale simplifies database cluster management by providing a centralized point from which to monitor and manage all nodes in the cluster. Through its monitoring module, MaxScale tracks the status of each server, allowing you to detect problems and take corrective action automatically.

4. Query Security and Filtering

MaxScale can be used as a security tool to protect database access. The filter module can be configured to log, block, or modify queries based on specific rules, providing an additional layer of protection against malicious or unauthorized queries.

Additionally, with support for SSL/TLS certificate management, MaxScale can ensure that all connections between clients and databases are secure.

Benefits of MariaDB MaxScale

Using MaxScale brings numerous benefits to those managing critical database infrastructures:

1. High Availability (HA): MaxScale can automatically detect when a database server becomes unavailable and redirect requests to another working node, ensuring that your application continues to run without interruption.
2. Scalability: By managing load balancing across nodes, MaxScale allows you to horizontally scale read operations by simply adding more replica nodes to the cluster.
3. Simplicity of management: abstracts the complexity of managing a database cluster, providing a single point of access and monitoring for the entire cluster.
4. Downtime Reduction: With automatic failover and constant monitoring, MaxScale reduces the risk of downtime even in the event of server failures.
5. Safety: acts as an additional layer of protection, filtering and monitoring incoming queries and ensuring secure connections via SSL/TLS.

Conclusion

In an era where databases are the beating heart of many critical applications, tools like MariaDB MaxScale are essential for ensuring scalability, high availability, and security. MaxScale not only simplifies the management of complex database clusters, but also offers advanced features such as load balancing, automatic failover, and query filtering, making it an essential solution for anyone managing MariaDB or MySQL databases in high-traffic environments.

Adopting MariaDB MaxScale allows you to obtain a more resilient, high-performance and secure database architecture, facilitating the operation of applications even in the most complex and critical situations.
